iansane Member
Joined: 16 Jan 2004 Posts: 5740 Location: Bothell
1991 Pontiac Trans Am
|
Posted: Wed Feb 16, 2011 1:38 am Post subject: Wiring fun! |
|
|
So many of you know I have a mod schedule (or rather mod motivation?) similar to Dewey's. ( Hi Dew! ) in that it takes me awhile to get going. Well I finally started tearing apart one of the spare LSx harnesses I have. Any of you that have looked under my hood have seen the rats nest of wires I call an engine harness and while it has worked beautifully, it is FAR from beautiful. My perfectionism is kicking in and I'd like to clean up and maybe hide the wires a bit. I doubt I'll get it done by dyno but I can try. I also figured I'd give a glimpse to anyone looking to build/strip their own harness for LSx.
Started with this.

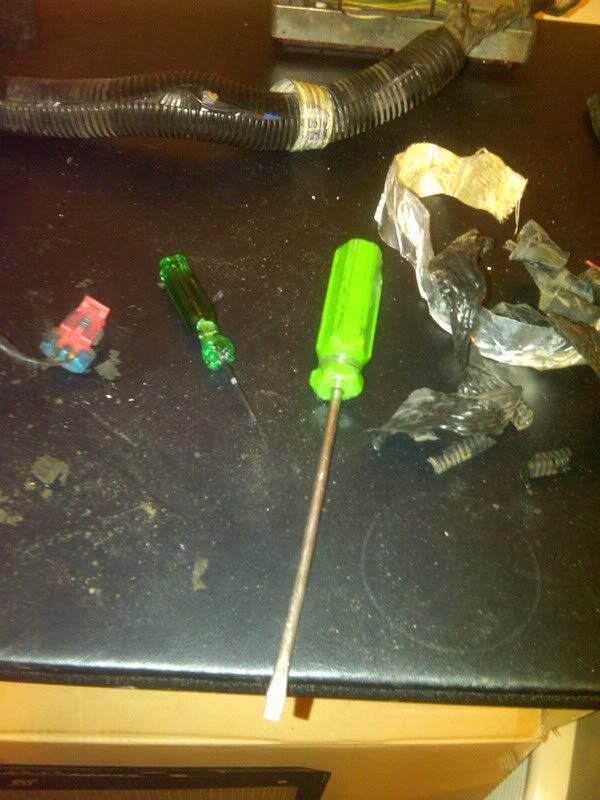

My two most trusty harness stripping tools. Pin tool and flathead screw driver.

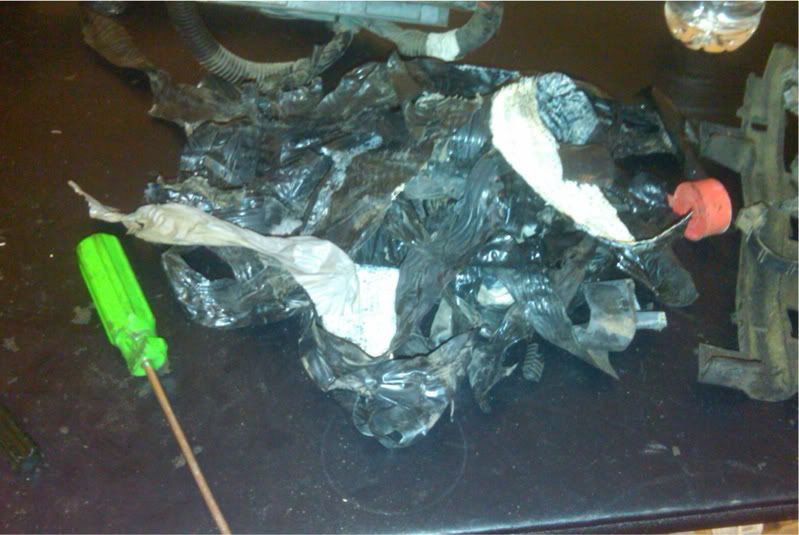

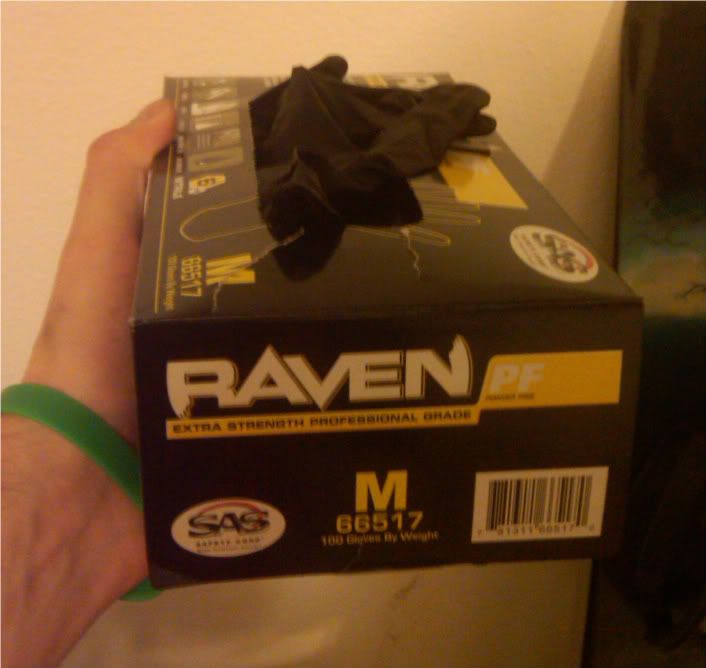

And since I want to keep my hands somewhat clean during this I'll use gloves. Harness Adhesive is nasty stuff and these are some new gloves I got in at work. They're fricken thick as hell and tough. Much better than the generic ones.

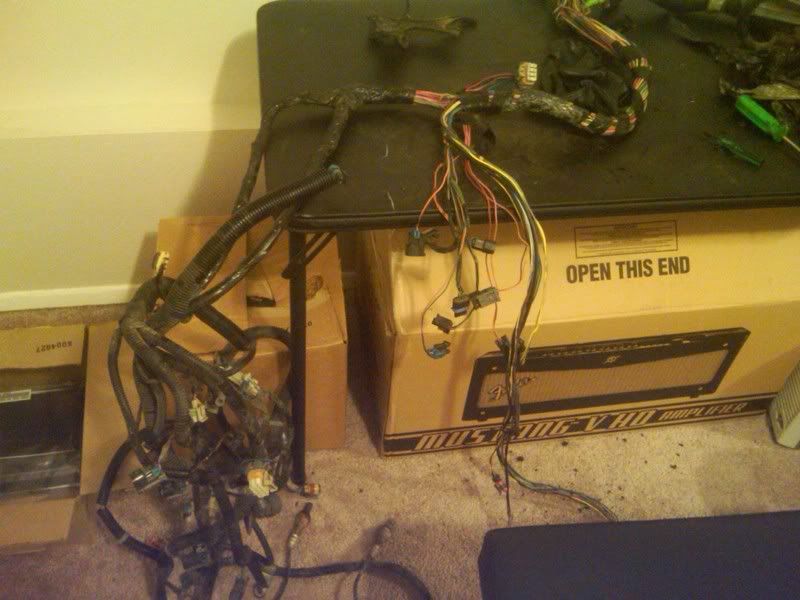

After about an hour I'm left with this. And I'm not even halfway done. Awesome.
I forgot how insanely tedious this is. If I didn't want to route wires myself and wrap with specific covers I'd probably pay someone else to do this!
And I'm done for tonight. Maybe I'll continue tomorrow. _________________
Quote: | Sometimes I actually think I'm slightly retarded in the mouth. |
|
|
Back to top |
|
|
91RSVert Member
Joined: 16 May 2007 Posts: 2736 Location: AR
1991 Chevrolet Camaro RS
|
Posted: Wed Feb 16, 2011 3:38 am Post subject: |
|
|
Been their, done that. This project sucks.
I should take some pics of mine. Looks almost like a stock harness. |
|
Back to top |
|
|
83Z28BlackBetty Bam-Ba-Lam
Joined: 13 Mar 2006 Posts: 2083 Location: Aloha
1983 Chevrolet Camaro Z/28
|
Posted: Wed Feb 16, 2011 4:48 am Post subject: |
|
|
Damn that looks like a project and a half! Good luck man!
-jake _________________ 1983 Z-28 5.7 LT1, T56, Headman headers, BW 9 Bolt Posi Disc, WS6 suspension
|
|
Back to top |
|
|
aaron_sK Member
Joined: 23 Jan 2006 Posts: 8834 Location: Back in beautiful Tacompton
1987 Chevrolet Camaro IROC-Z
|
Posted: Wed Feb 16, 2011 8:27 am Post subject: |
|
|
I never have figured out why people hate electrical. I love rewiring stuff. I must be a crazy person.
BTW, what's the Mustang amplifier for? |
|
Back to top |
|
|
Twilightoptics Hardcore (12sec Club)
Joined: 13 Jan 2004 Posts: 9191 Location: Auburn , WA
1987 Chevrolet Camaro IROC-Z
|
Posted: Wed Feb 16, 2011 9:15 am Post subject: |
|
|
We've got this awesome Volvo Electrical Tape. It's cloth and lets the harness move a little bit better than the $2.00 roll of 6 from harborfrieght special.
Love this stuff. _________________ A redline a day keeps the carbon away! |
|
Back to top |
|
|
91camaro_rs Member
Joined: 03 Dec 2008 Posts: 1712 Location: Fox Island, Wa
1991 Chevrolet Camaro RS
|
Posted: Wed Feb 16, 2011 10:09 am Post subject: |
|
|
i need to re do my harness too _________________
'91 Camaro RS 5.7 TPI- 700r4- 3.27 posi- headers- chambered exhaust- |
|
Back to top |
|
|
Schultzy89GTA M.R.A. (11sec Club)
Joined: 08 Jan 2004 Posts: 4415 Location: Gresham, OR
1989 Pontiac GTA
|
Posted: Wed Feb 16, 2011 10:14 am Post subject: |
|
|
Twilightoptics wrote: | We've got this awesome Volvo Electrical Tape. It's cloth and lets the harness move a little bit better than the $2.00 roll of 6 from harborfrieght special.
Love this stuff. |
That available to the publik anywhere?
-Schultzy |
|
Back to top |
|
|
Twilightoptics Hardcore (12sec Club)
Joined: 13 Jan 2004 Posts: 9191 Location: Auburn , WA
1987 Chevrolet Camaro IROC-Z
|
Posted: Wed Feb 16, 2011 10:20 am Post subject: |
|
|
Sure. I think it's like $18 something a roll. I haven't priced it in a while. Techs have many laying in their tool box :O) And I feel I might have a wiring job coming up today lol
Would you like a roll? _________________ A redline a day keeps the carbon away! |
|
Back to top |
|
|
Schultzy89GTA M.R.A. (11sec Club)
Joined: 08 Jan 2004 Posts: 4415 Location: Gresham, OR
1989 Pontiac GTA
|
Posted: Wed Feb 16, 2011 12:08 pm Post subject: |
|
|
Yes I would. Haven't gone back to clean up my rat's nest after the last few times of pulling the engine. It used to be purdy under there! Dang Rich is making us all look bad with his detailing so need to get busy
-Schultzy |
|
Back to top |
|
|
iansane Member
Joined: 16 Jan 2004 Posts: 5740 Location: Bothell
1991 Pontiac Trans Am
|
Posted: Wed Feb 16, 2011 12:13 pm Post subject: |
|
|
As soon as I finish my take home Chem exam, go to lab, do meteorology homework/chem homework, and get off work I MIGHT be able to continue working on this.
Twilightoptics wrote: | Sure. I think it's like $18 something a roll. I haven't priced it in a while. Techs have many laying in their tool box :O) And I feel I might have a wiring job coming up today lol
Would you like a roll? |
How long is a roll? I'd like to buy a roll from ya to sample. Anything to clean to mess up a bit.
aaron_sK wrote: | I never have figured out why people hate electrical. I love rewiring stuff. I must be a crazy person.
BTW, what's the Mustang amplifier for? |
It's Sowers. I found it ironic he trades the ranger for a mustang and then picks up a fancy mustang guitar amp. But just to make you feel better I'm dropping all my dirt and oil residue in the box. |
|
Back to top |
|
|
Twilightoptics Hardcore (12sec Club)
Joined: 13 Jan 2004 Posts: 9191 Location: Auburn , WA
1987 Chevrolet Camaro IROC-Z
|
Posted: Wed Feb 16, 2011 5:34 pm Post subject: |
|
|
I'll get a roll for Mike and Ian. Remind me before dyno. If I don't end up with electrical jobs before then it should only be able $12 a roll my cost. Not sure how long one is. It's about 4 1/8" in dia and a hole core of 1 1/2". lol _________________ A redline a day keeps the carbon away! |
|
Back to top |
|
|
BluFbdy Member
Joined: 16 Jul 2010 Posts: 915 Location: Port Orchard WA
1989 Chevrolet Camaro RS
|
Posted: Wed Feb 16, 2011 10:18 pm Post subject: |
|
|
hmmm im seeing a full wire tuck in the near future lol _________________ If you expect a kick to the balls and get a slap to the face its still a victory
|
|
Back to top |
|
|
iansane Member
Joined: 16 Jan 2004 Posts: 5740 Location: Bothell
1991 Pontiac Trans Am
|
Posted: Wed Feb 16, 2011 10:28 pm Post subject: |
|
|
BluFbdy wrote: | hmmm im seeing a full wire tuck in the near future lol |
Near Not likely. I got this harness AWHILE ago and I'm just starting now.
I dabbled a bit more today but I have a crazy chem test I'm trying to do. I should be working on it now. |
|
Back to top |
|
|
DBL_TKE Member
Joined: 28 Feb 2007 Posts: 1505 Location: Aloha, OR
1991 Chevrolet Camaro Z/28
|
Posted: Fri Feb 18, 2011 8:21 pm Post subject: |
|
|
You take just as long as I do to get going on electrical. You may as well do a wire tuck now. Why do the work twice? _________________ Richmond 3.73 posi| 36/24 sway bars | SLP LM2 | Koni's | Ground Control 800/200 | Y2K wheels | Dyno Don headers & Y-pipe | airfoil | BBK underdrive pulleys | Raised strut mounts | Extended ball joints | LCARB'S
|
|
Back to top |
|
|
iansane Member
Joined: 16 Jan 2004 Posts: 5740 Location: Bothell
1991 Pontiac Trans Am
|
Posted: Sun Mar 06, 2011 10:23 pm Post subject: |
|
|

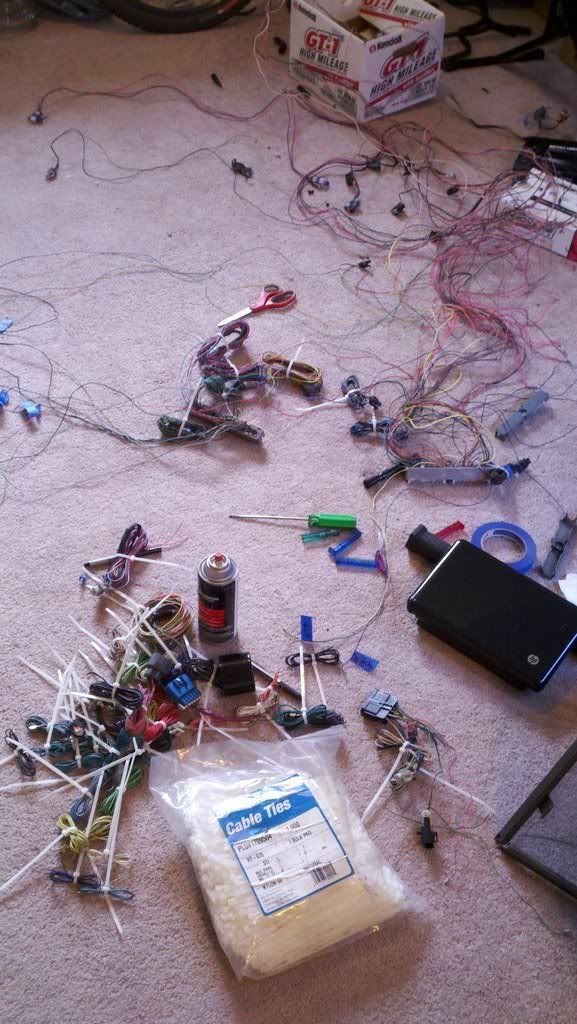

I know it doesn't LOOK like progress but it is.
Oh and pictures are clearer because I ditched my old blackberry storm.
I also just ordered 100 ecm pins so extend the harness cleanly because I am HORRIBLE at soldering and its a good bit easier. Does anyone know of any bulkhead style connectors for a large number of wires? 30+? trying to bring the wires in the car below sight line on the firewall. |
|
Back to top |
|
|
chevymad Master B
Joined: 11 Jan 2004 Posts: 5474
1987 Pontiac Formula
|
Posted: Sun Mar 06, 2011 10:35 pm Post subject: |
|
|
Have you tried the self soldering heat shrink butt splice connectors you just heat with a heat gun? Pretty sweet. Solders your wires together and shrink wraps the connection all at once, no soldering iron needed. |
|
Back to top |
|
|
iansane Member
Joined: 16 Jan 2004 Posts: 5740 Location: Bothell
1991 Pontiac Trans Am
|
Posted: Mon Mar 07, 2011 12:17 am Post subject: |
|
|
Yup! I used those to make 90% of the harness that's in the car. Those are AWESOME. Although this time around I'd like to do it with minimal butt splices, regardless of how solid they are. |
|
Back to top |
|
|
83Z28BlackBetty Bam-Ba-Lam
Joined: 13 Mar 2006 Posts: 2083 Location: Aloha
1983 Chevrolet Camaro Z/28
|
Posted: Mon Aug 22, 2011 10:30 am Post subject: |
|
|
I'm resurrecting this thread from the grave since i'm in the middle of a similar project myself.
Ian, How has the progress come?
~JAKE _________________ 1983 Z-28 5.7 LT1, T56, Headman headers, BW 9 Bolt Posi Disc, WS6 suspension
|
|
Back to top |
|
|
iansane Member
Joined: 16 Jan 2004 Posts: 5740 Location: Bothell
1991 Pontiac Trans Am
|
Posted: Mon Aug 22, 2011 8:51 pm Post subject: |
|
|
I stopped taking pictures during my progress because I got a bit lazy. The harness is fully ripped about and tagged. I've been taking a few nights here and there to drape it across the engine bay to try and find the cleanest routing for everything. I'm removing my coils from the valve covers which has some extra wiring involved. I'm to the step of final assembly now. _________________
Quote: | Sometimes I actually think I'm slightly retarded in the mouth. |
|
|
Back to top |
|
|
blue89 Member
Joined: 23 May 2006 Posts: 3482 Location: Bellingham/Eugene
1986 Chevrolet Camaro RS
|
Posted: Wed Aug 24, 2011 7:29 am Post subject: |
|
|
I wish i could be of use to you guys. This is what i do for work. Have you found a website that offers the part numbers for the connectors and terminals? I think most of them are Packard or Delphi. _________________ E30
86 RS - 7.4L V8 SOLD
89 RS - 3.25L V6 REMOVED
89 RS - 5.7L LT1 SOLD
|
|
